LEG SHIELD
0
45SD
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 45SF83810000 | WINDSHIELD | ₹ 525 | 1 | ||
| 2 | 901500502400 | SCREW ROUND HEAD | ₹ 59 | 6 | ||
| 3 | 901790580400 | NUT | ₹ 10 | 6 | ||

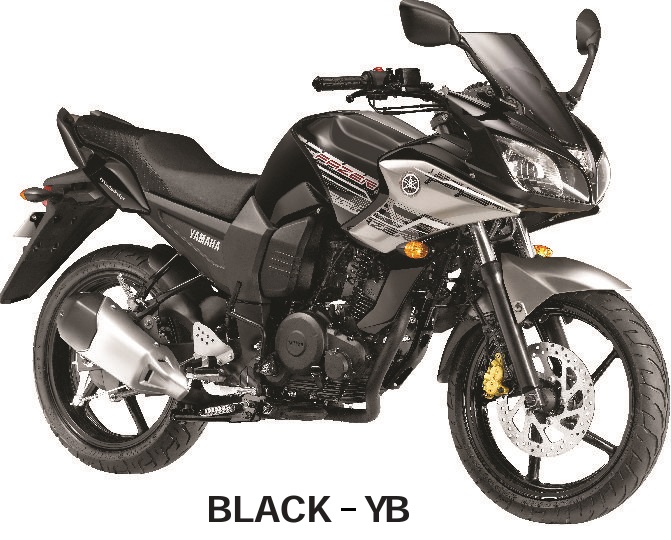

| 4A | 45SF835G0033 | BODY, FRONT UPPER 1-YB | ₹ 770 | 1 | FOR YB | |
| 4B | 45SF835G00P3 | BODY, FRONT UPPER 1-BWC1 | ₹ 975 | 1 | FOR BWC1 | |

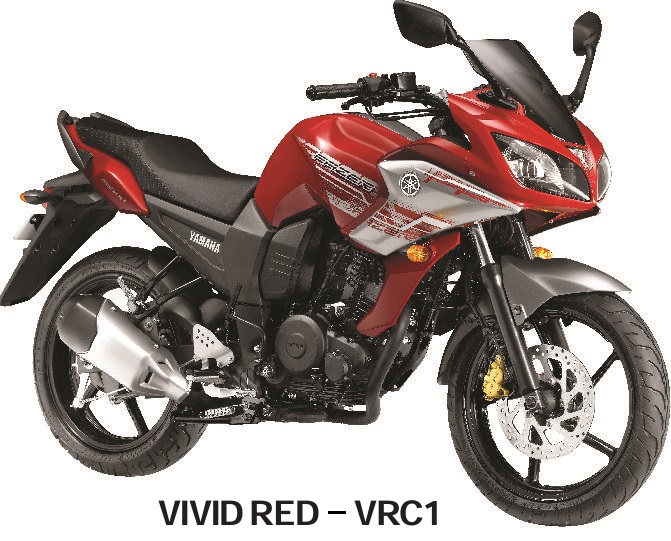

| 4C | 45SF835G00P6 | BODY, FRONT UPPER 1 -VRC1(VIVI | ₹ 615 | 1 | FOR VRC1 | |
| 5 | 45SF83560200 | STAY 1 | ₹ 2650 | 1 | ||
| 6 | 958170803500 | BOLT FLANGE | ₹ 12 | 2 | ||
| 7 | 45SF82130000 | PANEL BLIND 1 | ₹ 59 | 1 | ||
| 8 | 2WSF62800000 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 425 | 1 | ||
| 9 | 2WSF62900000 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 425 | 1 | ||
| 10 | 45SF84830000 | PLATE RUBBER 1 | ₹ 8 | 1 | ||
| 11 | 45SF84840000 | PLATE RUBBER 2 | ₹ 8 | 1 | ||
| 12 | 45SF84850000 | PLATE, RUBBER 3 | ₹ 12 | 2 | ||
| 13 | 90387068C200 | COLLAR | ₹ 8 | 4 | ||
| 14 | 913170603000 | BOLT | ₹ 15 | 4 | ||
| 15 | 20PF34690000 | CAP BOLT | ₹ 2 | 4 | ||
| 16 | 45SF16850000 | BRACKET LICENSE | ₹ 86 | 1 | ||
| 17 | 45SF831T0000 | STAY SUPPORT 1 | ₹ 93 | 1 | ||
| 18 | 45SF832T0000 | STAY SUPPORT 2 | ₹ 89 | 1 | ||
| 19 | 958070601200 | BOLT FLANGE | ₹ 8 | 4 | ||
| 20A | 45SF117V0033 | COVER 7 - YB | ₹ 525 | 1 | FOR YB | |
| 20B | 45SF117V00P3 | COVER 7-BWC1 | ₹ 415 | 1 | FOR BWC1 | |
| 20C | 45SF117V00P6 | COVER 7- VRC1(VIVID RED) | ₹ 530 | 1 | FOR VRC1 | |
| 21A | 45SF117W0033 | COVER 8 -YB | ₹ 460 | 1 | FOR YB | |
| 21B | 45SF117W00P3 | COVER 8-BWC1 | ₹ 415 | 1 | FOR BWC1 | |
| 21C | 45SF117W00P6 | COVER 8- VRC1(VIVID RED) | ₹ 530 | 1 | FOR VRC1 | |
| 22 | 45SF17780000 | DAMPER LOCATING 1 | ₹ 8 | 4 | ||
| 23 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 4 | ||
| 24 | 902020518000 | WASHER PLATE | ₹ 28 | 4 | ||
| 25 | 90183050A700 | NUT SPRING | ₹ 22 | 4 | ||
| 26A | 45SXF836C0P4 | PANEL COMP 1-SILVER | ₹ 583 | 1 | FOR YB,VRC1 | |
| 26B | 45SXF836N0P4 | PANEL COMP 1-SILVER | ₹ 583 | 1 | FOR VRC1 | |
| 26C | 45SXF836E0P6 | PANEL COMP 1-VRC1(VIVID RED) | ₹ 583 | 1 | FOR BWC1 | |
| 27 | 5KAF413B0000 | TUNNING FORK | ₹ 48 | 1 | ||
| 28A | 45SXF83GC0P4 | PANEL COMP 2-SILVER | ₹ 583 | 1 | FOR YB,VRC1 | |
| 28B | 45SXF83GN0P4 | PANEL COMP 2-SILVER | ₹ 583 | 1 | FOR VRC1 | |
| 28C | 45SXF83GE0P6 | PANEL COMP 2-VRC1(VIVID RED) | ₹ 583 | 1 | FOR BWC1 | |
| 29 | 5KAF413B0000 | TUNNING FORK | ₹ 48 | 1 | ||
| 30 | 977025001200 | SCREW TAPPING | ₹ 11 | 6 | ||
| 31 | 901830580700 | NUT SPRING | ₹ 9 | 6 | ||
| 32 | 45SF837L0000 | PANEL, CONSOLE 1 | ₹ 95 | 1 | ||
| 33 | 45SF837M0000 | PANEL, CONSOLE 2 | ₹ 140 | 1 | ||
| 34 | 901110500200 | BOLT,HEX. SOCKET BUTTON | ₹ 18 | 4 | ||
| 35 | 90183050A700 | NUT SPRING | ₹ 22 | 4 | ||
| 36 | 902690681400 | RIVET | ₹ 8 | 2 | ||
| 37 | 902020600400 | WASHER PLATE | ₹ 3 | 2 | ||
| 38 | 904800155800 | GROMMET | ₹ 10 | 3 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 45SD FAZER V1 Series LEG SHIELD
