FENDER
0
5TS1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

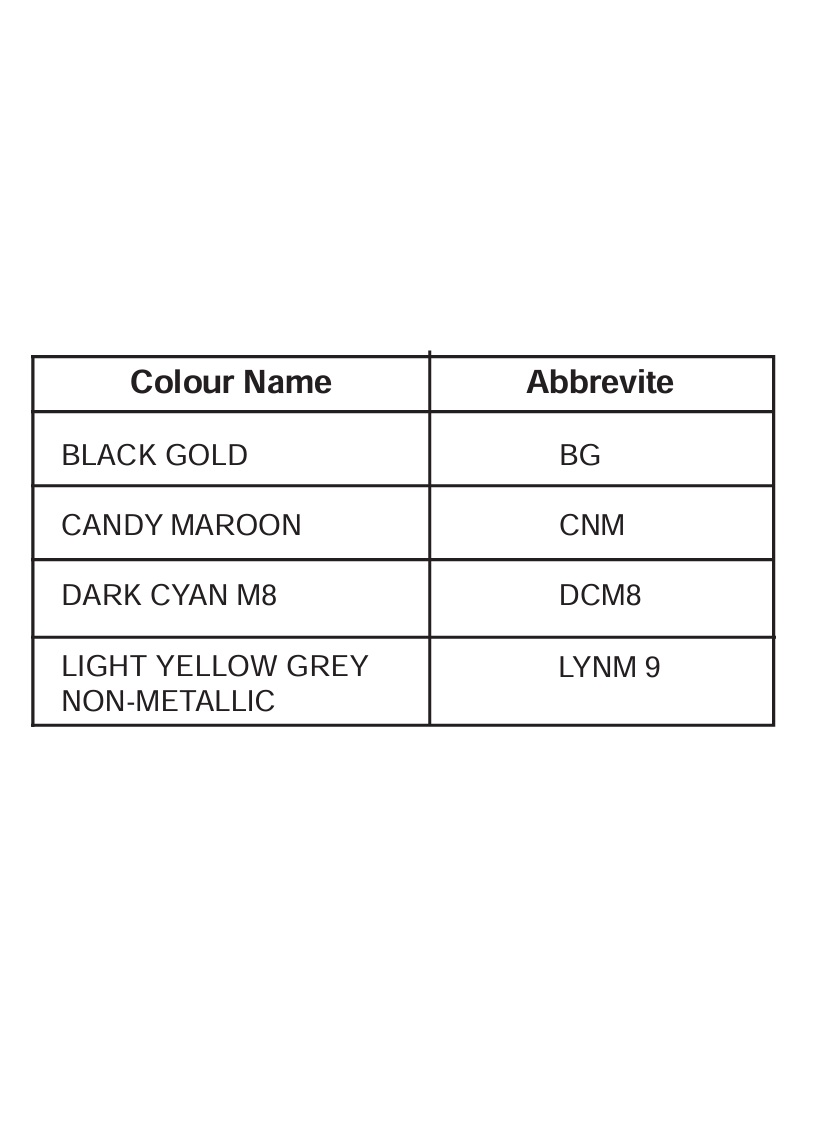

| 1A | 5TSWF1517002 | FR.FENDER(SILVER) | ₹ 960 | 1 | FOR BG | |
| 1B | 5TSF1510616X | FR. FENDER COMP. CANDY MAROON | ₹ 1056 | 1 | FOR CNM | |
| 1C | 5TSF1510618X | FR. FENDER COMP DARK CYAN MATL | ₹ 733 | 1 | FOR DCM8 | |
| 1D | 5TSF1510614X | FRONT FENDER COMP. (LYNM9) | ₹ 733 | 1 | FOR LYNM9 | |
| 2 | 958270601600 | BOLT FLANGE | ₹ 5 | 4 | ||
| 3 | 5TSF15180100 | HOLDER, CABLE | ₹ 25 | 1 | ||
| 4 | 5TSF16110000 | REAR FENDER | ₹ 260 | 1 | ||
| 5 | 904641082900 | CLAMP | ₹ 6 | 2 | ||
| 6 | 901190160800 | 901190160800 | ₹ 0 | 3 | ||
| 7 | 5TSF16850000 | BRACKET LICENCE | ₹ 66 | 1 | ||
| 8 | 901190610800 | BOLT WITH WASHER | ₹ 6 | 2 | ||
| 9 | 5TSF16210100 | FLAP | ₹ 80 | 1 | ||
| 10 | 5USF16811000 | 5USF16811000 | ₹ 0 | 1 | ||
| 11 | 9850N0601200 | SCREW PAN HEAD | ₹ 2 | 2 | ||
| 12 | 9290N0610000 | WASHER, SPRING | ₹ 1 | 2 | ||
| 13 | 957070550000 | NUT FLANGE | ₹ 1 | 2 | ||
| 14 | 5USH51300000 | 5USH51300000 | ₹ 0 | 1 | ||
| 15 | 5TSF15410000 | DAMPER-1 | ₹ 14 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 5TS1 LIBERO Series FENDER
