SIDE COVER
0
5TSF
.jpg)
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

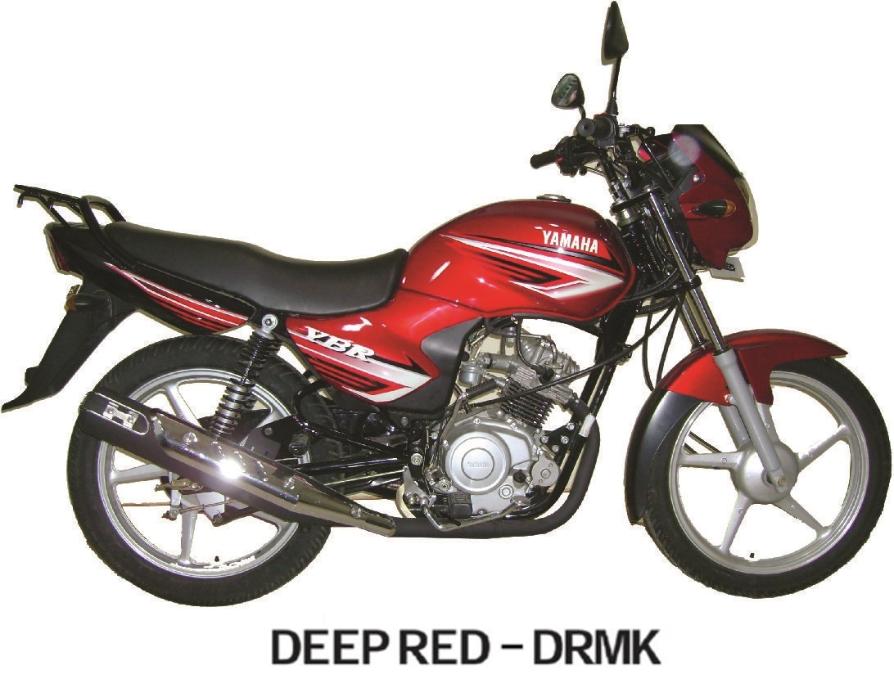

| 1A | 5TSXF171K00X | SIDE COVER ASSY 1-DRMK | ₹ 974 | 1 | FOR DRMK | |

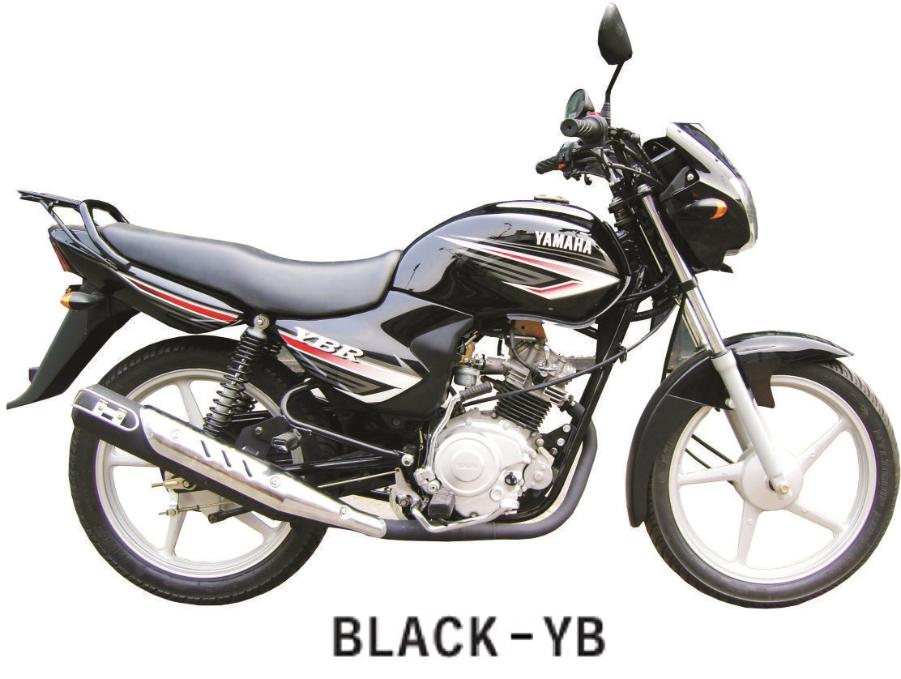

| 1B | 5TSXF171L01X | SIDE COVER ASSY 1-YB | ₹ 974 | 1 | FOR YB | |
| 1C | 5TSXF171M00X | SIDE COVER ASSY 1-DRMK | ₹ 974 | 1 | FOR YB1 | |
| 2A | 5TSXF172K00X | SIDE COVER ASSY 2-DRMK | ₹ 974 | 1 | FOR DRMK | |
| 2B | 5TSXF172L01X | SIDE COVER ASSY 2 - YB | ₹ 974 | 1 | FOR YB | |
| 2C | 5TSXF172M00X | SIDE COVER ASSY 2-DRMK(RED) | ₹ 974 | 1 | FOR YB1 | |
| 3 | 904801386100 | GROMMET | ₹ 8 | 2 | ||
| 4 | 5TSF17780000 | DAMPER LOCATING-1 | ₹ 5 | 2 | ||
| 5 | 2YAWF1780100 | LOCK WITH KEY( COVER SIDE 1-LH | ₹ 195 | 1 | ||
| 6 | 901792280000 | NUT | ₹ 9 | 1 | ||
| 7 | 904802418600 | GROMMET | ₹ 8 | 1 | ||
| 8 | 90201225A400 | WASHER PLAIN | ₹ 3 | 1 | ||
| 9 | 901590609200 | SCREW WITH WASHER | ₹ 54 | 1 | ||
| 10 | 5TSF177G1000 | BOX BATTERY | ₹ 79 | 1 | ||
| 11 | 90387066K100 | COLLAR | ₹ 6 | 3 | ||
| 12 | 901190615200 | BOLT, WITH WASHER | ₹ 15 | 3 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 5TSF YBR Series SIDE COVER
