WINDSHIELD
0
BCW4
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BCWF83810000 | WINDSHIELD | ₹ 432 | 1 | ||
| 2 | 901790580400 | NUT | ₹ 10 | 6 | ||

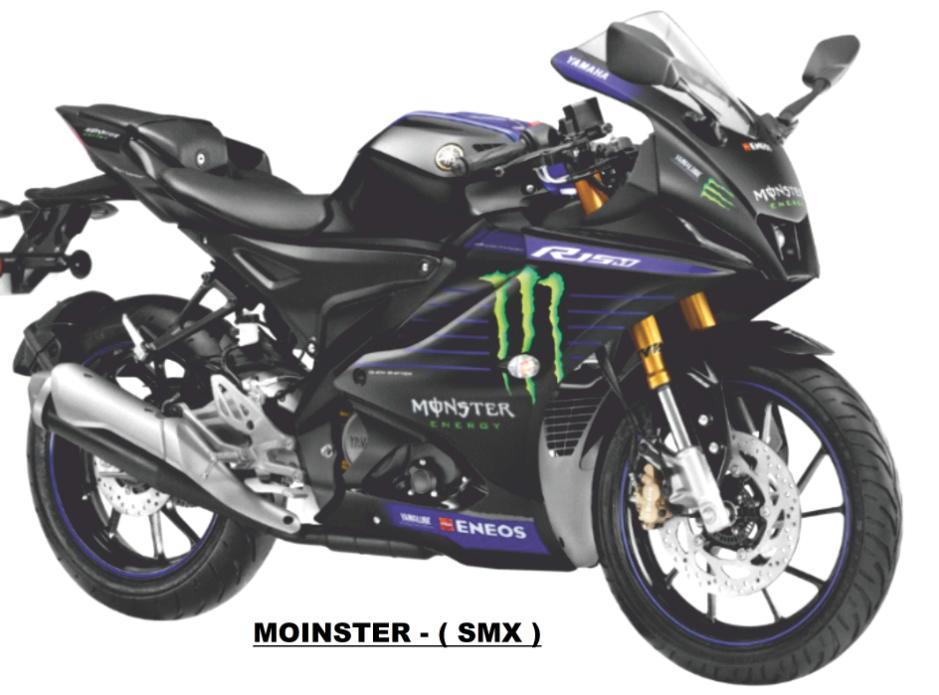

| 3 | BCWWF83500P4 | BODY COWNLING ASSY | ₹ 1387 | 1 | FOR SMX | |
| 4 | BCWF83AM0000 | GRAPHIC 15 | ₹ 99 | 1 | ||
| 5 | BCWF83AN0000 | GRAPHIC 16 | ₹ 99 | 1 | ||
| 6 | B9EF839G0000 | GRAPHIC 10 | ₹ 36 | 1 | ||
| 7 | B9EF839G0000 | GRAPHIC 10 | ₹ 36 | 1 | ||
| 8 | B9EF841G1000 | GRAPHIC 1 | ₹ 16 | 1 | ||
| 9 | B9EF842G1000 | GRAPHIC 2 | ₹ 29 | 1 | ||
| 10 | B9EF843G1000 | GRAPHIC 3 | ₹ 29 | 1 | ||
| 11 | B9EF844G1000 | GRAPHIC 4 | ₹ 59 | 1 | ||
| 12 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 13 | 901500502400 | SCREW ROUND HEAD | ₹ 59 | 6 | ||
| 14 | BCWF835G0000 | BODY FRONT UPPER 1 | ₹ 370 | 1 | ||
| 15 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 16 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 17 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 18 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 19 | 905200583800 | DAMPER PLATE | ₹ 8 | 2 | ||
| 20 | BCWF83560000 | STAY 1 | ₹ 1160 | 1 | ||
| 21 | 901050800200 | BOLT WASHER BASED | ₹ 8 | 2 | ||
| 22 | 904801356700 | GROMMET | ₹ 8 | 1 | ||
| 23 | BK7F62800000 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 455 | 1 | ||
| 24 | BK7F62900000 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 455 | 1 | ||
| 25 | BCWF84830000 | PLATE RUBBER 1 | ₹ 28 | 2 | ||
| 26 | BCWF84840000 | PLATE RUBBER 2 | ₹ 180 | 1 | ||
| 27 | 913170603000 | BOLT | ₹ 15 | 4 | ||
| 28 | 903870613100 | COLLAR | ₹ 13 | 4 | ||
| 29 | BK7F16850000 | BRACKET LICENSE | ₹ 111 | 1 | ||
| 30 | 20PF34690000 | CAP BOLT | ₹ 2 | 4 | ||
| 31 | BCWF117V00P2 | COVER 7 | ₹ 1157 | 1 | FOR SMX | |
| 32 | 901830681800 | NUT SPRING | ₹ 23 | 1 | ||
| 33 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 34 | 904800155900 | GROMMET | ₹ 10 | 4 | ||
| 35 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 36 | 903870689900 | COLLAR | ₹ 33 | 1 | ||
| 37 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 38 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 39 | BCWF172G0000 | PANEL 3 | ₹ 304 | 1 | ||
| 40 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 41 | 904801356700 | GROMMET | ₹ 8 | 1 | ||
| 42 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 43 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 44 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 45 | 903380718000 | PLUG | ₹ 84 | 1 | ||
| 46 | BCWF117W00P2 | COVER 8 | ₹ 1157 | 1 | FOR SMX | |
| 47 | 901830681800 | NUT SPRING | ₹ 23 | 1 | ||
| 48 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 49 | 904800155900 | GROMMET | ₹ 10 | 4 | ||
| 50 | 904801280500 | GROMMET | ₹ 8 | 1 | ||
| 51 | 903870689900 | COLLAR | ₹ 33 | 1 | ||
| 52 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 53 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 54 | BCWF172H0000 | PANEL 4 | ₹ 304 | 1 | ||
| 55 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 56 | 904801356700 | GROMMET | ₹ 8 | 1 | ||
| 57 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 58 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 59 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 60 | 903380718000 | PLUG | ₹ 84 | 1 | ||
| 61 | BCWF841G0000 | GRAPHIC 1 | ₹ 44 | 1 | ||
| 62 | BCWF842G0000 | GRAPHIC 2 | ₹ 44 | 1 | ||
| 63 | BCWF839E1000 | GRAPHIC 8 | ₹ 71 | 1 | ||
| 64 | BCWF839F1000 | GRAPHIC 9 | ₹ 71 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA BCW4 R15 V4 Series WINDSHIELD
