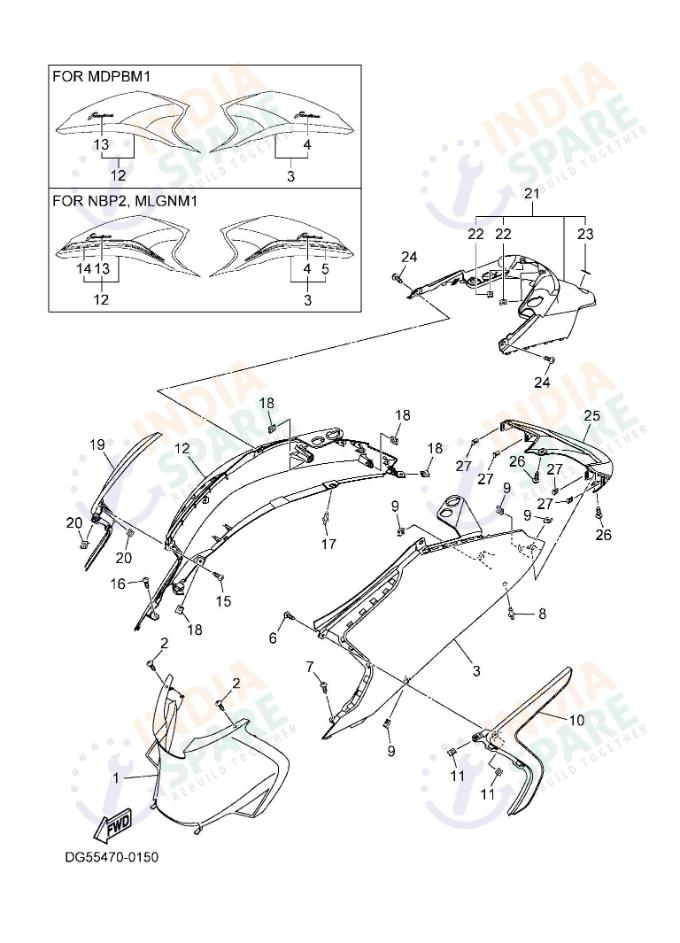

SIDE COVER
0
DG55
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF172W0000 | COVER | ₹ 110 | 1 | ||
| 2 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 3A | B7JXF17100P3 | SIDE COVER ASSY 1 MDPBM1 | ₹ 1133 | 1 | FOR MDPBM1 | |
| 3B | B7JXF17100P9 | SIDE COVER ASSY 1 | ₹ 1133 | 1 | FOR NBP2 | |
| 3C | B7JXF17100PG | B7JXF17100PG | ₹ 0 | 1 | FOR MLGNM1 | |
| 4A | 2SPF173B0000 | EMBLEM 3D | ₹ 464 | 1 | FOR MDPBM1,NBP2 | |
| 4B | DG5F173B0000 | DG5F173B0000 | ₹ 0 | 1 | FOR MLGNM1 | |
| 5A | B7JF174G2000 | GRAPHIC 3 | ₹ 165 | 1 | FOR NBP2 | |
| 5B | DG5F174G0000 | DG5F174G0000 | ₹ 0 | 1 | FOR MLGNM1 | |
| 6 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 7 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 8 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 9 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 10A | B7JF171L10P0 | MOLE SIDE COVER 1 SMX | ₹ 388 | 1 | FOR MDPBM1 | |
| 10B | B7JF171L0000 | MOLE SIDE COVER 1 | ₹ 388 | 1 | FOR NBP2,MLGNM1 | |
| 11 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 12A | B7JXF17200P3 | SIDE COVER ASSY 2 MDPBM1 | ₹ 1133 | 1 | FOR MDPBM1 | |
| 12B | B7JXF17200P9 | SIDE COVER ASSY 2 | ₹ 1133 | 1 | FOR NBP2 | |
| 12C | B7JXF17200PG | B7JXF17200PG | ₹ 0 | 1 | FOR MLGNM1 | |
| 13A | 2SPF173B0000 | EMBLEM 3D | ₹ 464 | 1 | FOR MDPBM1,NBP2 | |
| 13B | DG5F173B0000 | DG5F173B0000 | ₹ 0 | 1 | FOR MLGNM1 | |
| 14A | B7JF174H2000 | GRAPHIC 4 | ₹ 165 | 1 | FOR NBP2 | |
| 14B | DG5F174H0000 | DG5F174H0000 | ₹ 0 | 1 | FOR MLGNM1 | |
| 15 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 16 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 17 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 18 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 19A | B7JF171M10P0 | MOLE SIDE COVER 2 SMX | ₹ 388 | 1 | FOR MDPBM1 | |
| 19B | B7JF171M0000 | MOLE SIDE COVER 2 | ₹ 388 | 1 | FOR NBP2,MLGNM1 | |
| 20 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 21A | B7JXF17300P0 | COVER SIDE 3 MBL2 | ₹ 444 | 1 | FOR MDPBM1,NBP2 | |
| 21B | B7JXF17300P9 | B7JXF17300P9 | ₹ 0 | 1 | FOR MDPBM1 | |
| 22 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 23 | 2SPF836B0000 | TUNING FORK MARK | ₹ 20 | 1 | ||
| 24 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 25A | B7JH451600P3 | COVER TAILLIGHT MDPBM1 | ₹ 136 | 1 | FOR MDPBM1 | |
| 25B | B7JH451600P9 | COVER TAILLIGHT | ₹ 136 | 1 | FOR NBP2 | |
| 25C | B7JH451600PG | B7JH451600PG | ₹ 0 | 1 | FOR MLGNM1 | |
| 26 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 27 | 904640400500 | CLAMP | ₹ 6 | 4 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA DG55 FASCINO 125 Series SIDE COVER
